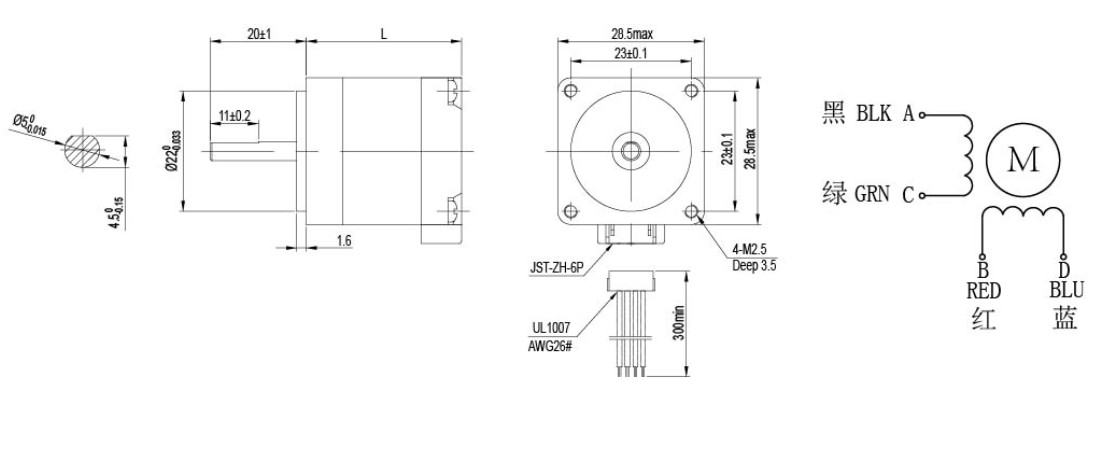

| NEMA 11(28MM) | |
| Product name | NEMA 11(28MM) |
| Steppermotor's Wire | 4 |
| Frame Size | 28mm*28mm |
| Max Static Torque | 100-1000g.cm |
| Resistance | 1-10Ω |
| Cogging Torque | <150-220 g.cm |
| Weight | 0.1-0.2kg |
| Color | black |
| Application | Spotlight |
| CNC machine tool | |
| 3D&Printer | |
| Wire cutting the workbench, | |
| Planting machine table (pores positioning) | |
| ATM machine, | |
| Inkjet printer, | |
| Cutting plotter, | |
| Photo machine, | |
| Medical equipment and equipment, | |
| Computer peripherals and mass storage devices, | |
| precision instrument, | |
| Office automation, | |
| Robots and other fields. | |
| Computer embroidery machine, etc. |
|
Model 型号 |
Lead Wire 引出线 |
Length 机身长 |
Current 电流 |
Resistance 电阻 |
Inductance 电感 |
Max Static Torque 静转矩 |
Rotor Inertia 转子惯量 |
Weight 重量 |
| No. | mm | A | Ω | mH | kg.cm | g.com2 | KG | |
| 28BYGH33-01A | 4 | 33 | 0.8 | 5.3 | 3.3 | 0.6 | 8 | 0.11 |
| 28BYGH45-01A | 4 | 45 | 0.8 | 7.8 | 5.4 | 0.8 | 11 | 0.14 |
| 28BYGH48-01A | 4 | 48 | 0.8 | 8.6 | 6.7 | 0.9 | 13 | 0.18 |
